(NEW) Eidolic E-2P-IEM - 2-pin (0.78mm) IEM / CIEM connectors - threaded barrel - threaded end-caps - DIY

(NEW) Eidolic E-2P-IEM - 2-pin (0.78mm) IEM / CIEM connectors - threaded barrel - threaded end-caps - DIY
Brand: Eidolic
Product Code: Eidolic2pinciem2022
Availability: In Stock
   - OR -

NEW model

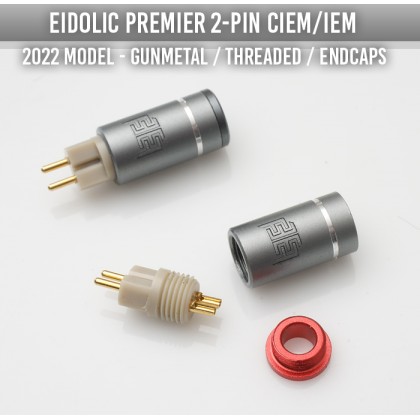

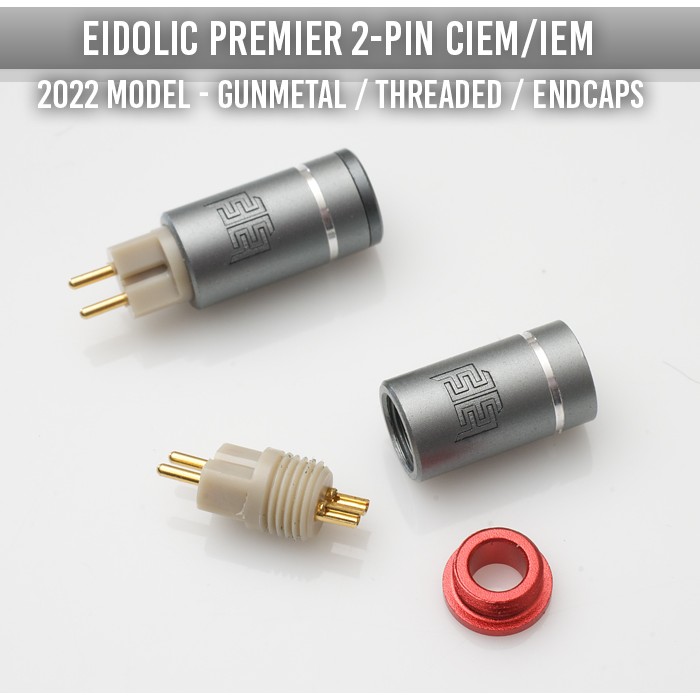

Eidolic 2-pin ciem/iem (0.78mm)

- Newly designed barrel with deep engraved logo

- Threaded for top reliability

- Threaded channel indicator end-caps (red/gunmetal)

- Peek insulator with gold plated 0.78mm pins (standard pin size)

- Internally half-cut for easier soldering

- Excellent space inside to fit a little bigger gauges if needed

- Now comes with a bonus small ring for internal / rear strain relief

With 0.78mm pins, this model fits the vast majority of IEMs – past, present, and future – including extruded, recessed, angled, and flush sockets, with excellent ergonomics.  There are some limited few exceptions such as UE TF10 and Spiral Ears Pro which require unique plugs.  The 2 pin plugs are a great fit for your Noble, JH, UE, 1964Ears, and much more.
The connector barrel is made of media-blasted aluminum rod stock lathed to precise specifications, with a new gray deep engraved Eidolic logo and engraved ring on each barrel.  The Eidolic Premier IEM/CIEM plug easily catches the eye with a gunmetal-gray motif.
Premier insulation:  The Premier 2-pin connector retains the high-grade tellurium copper pins pioneered in the previous model, with newly improved solder contact cups that are easier to connect wires to.  The connector features PEEK  insulation – the same ultra high temperature insulator featured on LEMO and other medical and aerospace grade connectors.  PEEK has excellent dielectric strength and superior heat resistance to Teflon — it will not break down during soldering, keeping the pins permanently locked in place.  With the extreme thermal and electrical conductivity of the tellurium copper pins, PEEK insulation is a must.
Screw-on barrel for easy installation.
Reliable, durable gold plating:  Gold is the most conductive surface plating that is also oxidation-resistant.  It is plated as thick as dimensional specifications allow for maximum lifespan. A groove and rectangular front profile allows secure fit into various models of recessed sockets.
Improved dimensions and ease of assembly.  These connectors offer a little more space inside the barrel compared to some other IEM connectors, allowing a variety of cables to fit and providing secure strain relief & protection of the solder joints inside.  Just solder the worry-free heat-resistant contacts, thread on the barrel, then fill with hot glue for strain relief (or use supplied rubber ring).  The pins are half-cut at the ends so the wire ends attach more easily.  The nonconductive, anodized aluminum barrel will not short the solder contacts in the event that it is in contact with wires or solder joints. There is no tapering on the rear hole to maximize the amount of glue (and wire) that can fit inside, for improved reliability.  These IEM plugs are faster and less tedious to assemble than any previous connector.




Write a review

Your Name:

Your Review: Note: HTML is not translated!

Rating: Bad           Good

Enter the code in the box below:

Why OCC?

Used throughout the high end audio industry in most flagship cable products, occ provides the superior quality copper and silver possible today.OCC (Ohno Continuous Cast) is the name given to the casting process developed to help defeat annealing issues and virtually eliminate all grain boundaries in copper or silver with a unique patented process. The OCC casting method uses specialized heated moulds in order to draw a single crystal up to 125 meters in length. With only a single crystal in very long lengths, there is an unimpeded free path for the best possible signal transfer. Along with this superior single long crystal structure, OCC provides copper and silver with the least possible oxides and other impurities.

Why Litz?

With each strand utilizing a razor thin enamel coating, Litz based wire provides a cable that will last a lifetime (will not oxidize).  Further with each strand acting independently until joining at the termination point, the design negates any bad effects typically associated with normal stranded wire (skin effect, proximity effect, etc.).  As another side benefit durability and flexibility are both increased.

Combining OCC (purest metal) with Litz design you really have an end result that is the ultimate cable possible today.

Why Pure OCC Copper, OCC Silver and True Fusion OCC Silver + OCC Copper

We go by the numbers using science as the guideline.  All metals have a conductivity rating as describe by the International Annealed Copper Standard (IACS).  All metals are compared against Copper at the 100% IACS rating mark.  OCC Copper is rated at 103% IACS and Silver 106% IACS.  Gold is rated at 73% IACS or 27% lower conductivity as compared to standard OFC/ETP copper (given the exact same amount of each metal).  Therefore it would take a significant amount more Gold to achievethe higher conductivity rating of copper.

We will never release anything less than OCC copper and will never release any alloys. So what is an alloy?  An alloy is defined as a mixture of two or more different metals, making the original metal less pure with worsened electrical performance than the original pure metal.  An alloy of 1% gold with 99% silver would yield around 89% IACS rating or 11% less conductivity than standard OFC/ETP copper.  While cables made of metals/alloys that are inferior to copper may alter the sound in a specific way, that is not our goal.  Norne Audio will always seek to utilize the absolute best materials (going by the numbers) in our pursuit of the absolute best cables possible today.  We believe that the cables with the best specifications yield the best possible sound of ones system.


Please watch the above animation if you prefer a quick visual overview.

IACS (International Annealed Copper Standard)

The IACS rating is the metric used to describe a metals conductivity as compared to the standard of copper.
First take a look below at pure metals conductivity ratings.

(1) OCC Pure Silver - 107%
(2) OCC Copper - 103%
(3) Copper (common grade) - 100%
(4) Gold - 73%

Silver is the best there is, in pure form, period.

If you take a 1"x 1"x 1" cube of pure silver and compare its conductivity to an identical 1"x 1"x 1" cube of gold, the gold is considered 32-35% less conductive than the pure silver.


An alloy, by definition, is less pure than the original pure metals it is comprised of.  Alloys are in existence largely for strength / hardness properties and are not meant for high end audio cables.  When you alloy a metal, say gold with silver, you quickly decrease its purity and IACS rating.  Even at just 1% gold alloyed with silver the IACS rating drops down well below plumbing grade copper.  Alloys in the audio world came about purely as competition increased and there was desperation for new ways to try and market a cable to the uneducated masses.

Norne Audio will always utilize the purest form of a metal and will always use pure silver occ litz, pure copper occ litz, spc occ litz or mixes thereof.  Our goal is the design that possesses the absolute top specifications of the highest possible quality.
